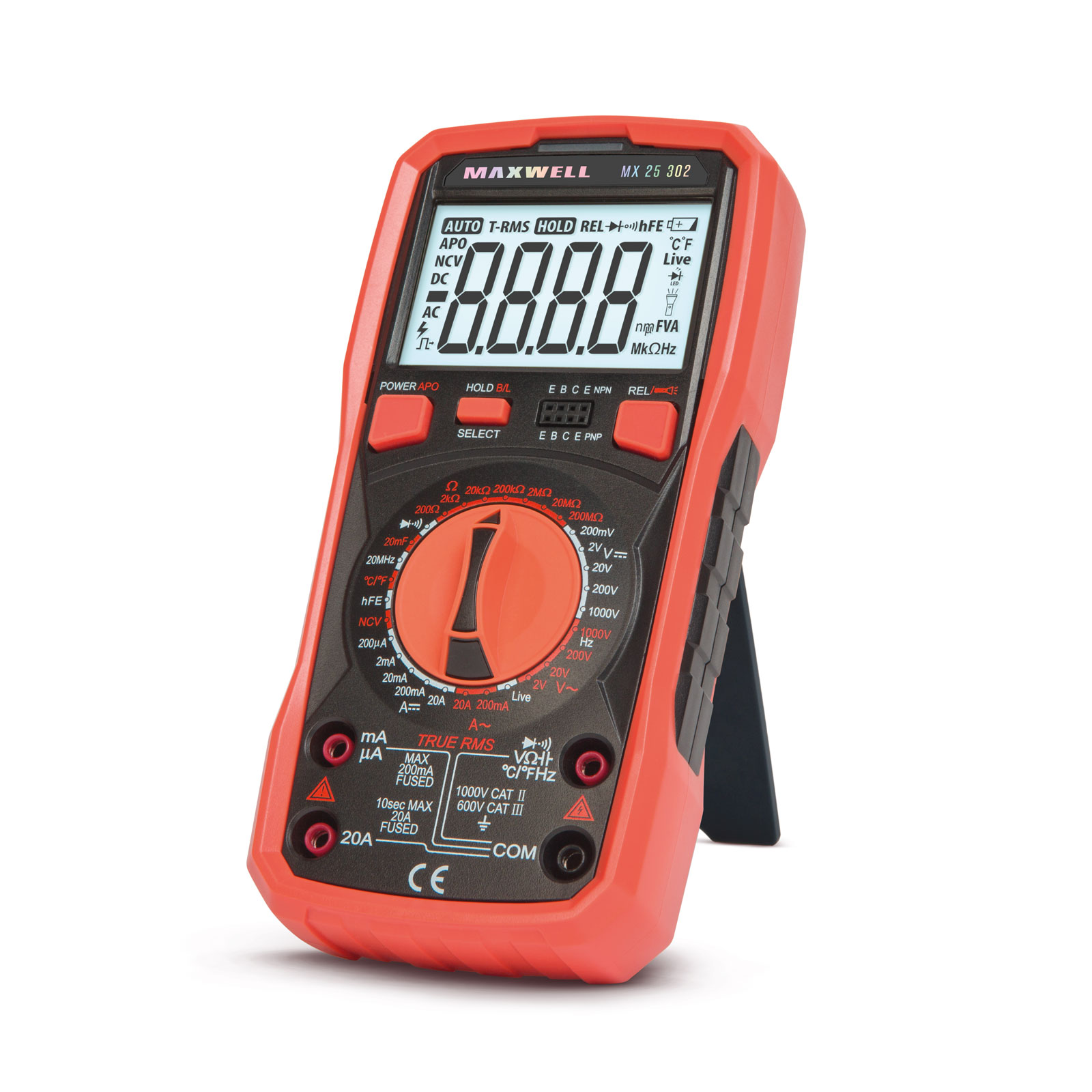

Digital Multimeter featuring TTL logic test for digital circuits with additional temperature and frequency measurement functions. True RMS, non-sinusoidal waveform, the backlight and the built-in phase rotation meter allow an easy measurement process. Features high-quality and durable constructions, as all of our 300-range products.
| Display: |
4 digits |
| AC V: |
1 mV - 750 V |
| DC V: |
0.1 mV – 1000 V |
| AC A: |
10 μA - 20 A |
| DC A: |
10 μA - 20 A |
| Resistance: |
0.1 Ω - 200 MΩ |
| Temperature: |
-40 °C - +1000 °C |
| Capacity: |
1 pF - 2000 μF |
| Frequency: |
1 Hz - 200 kHz |
| Size: |
190 x 95 x 40 mm |
| Diode test: |
 |
| Continuity test: |
|
| Beep: |
|

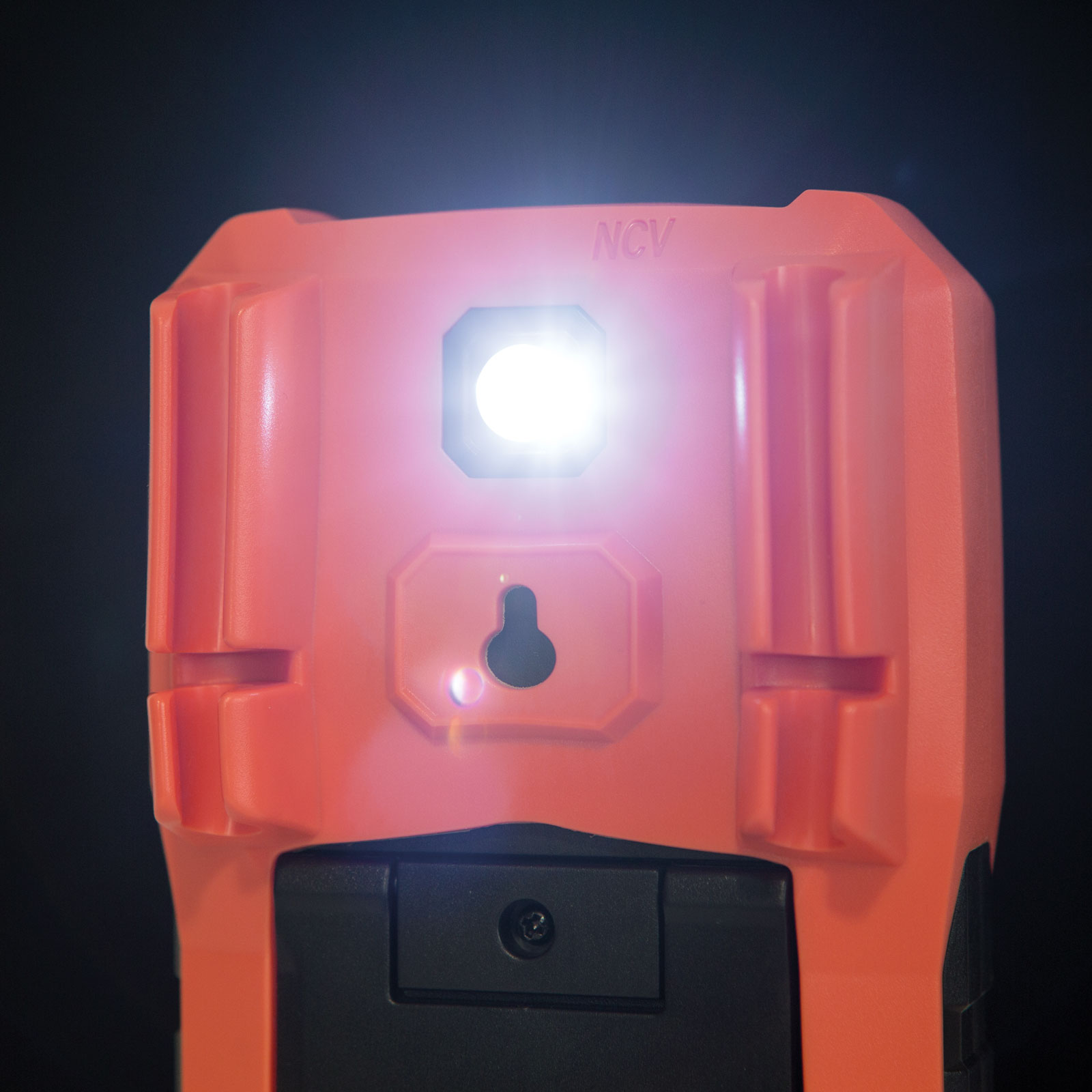

| Backlight: |
|
| Auto power-off: |
|
| Transistor test: |
|
| LED indicator: |
|
| Data hold: |
|
| Voltage detector with sound and light indicator: |
|
Accessories:
• 4xAAA Battery
• Banana Plug Thermocouple

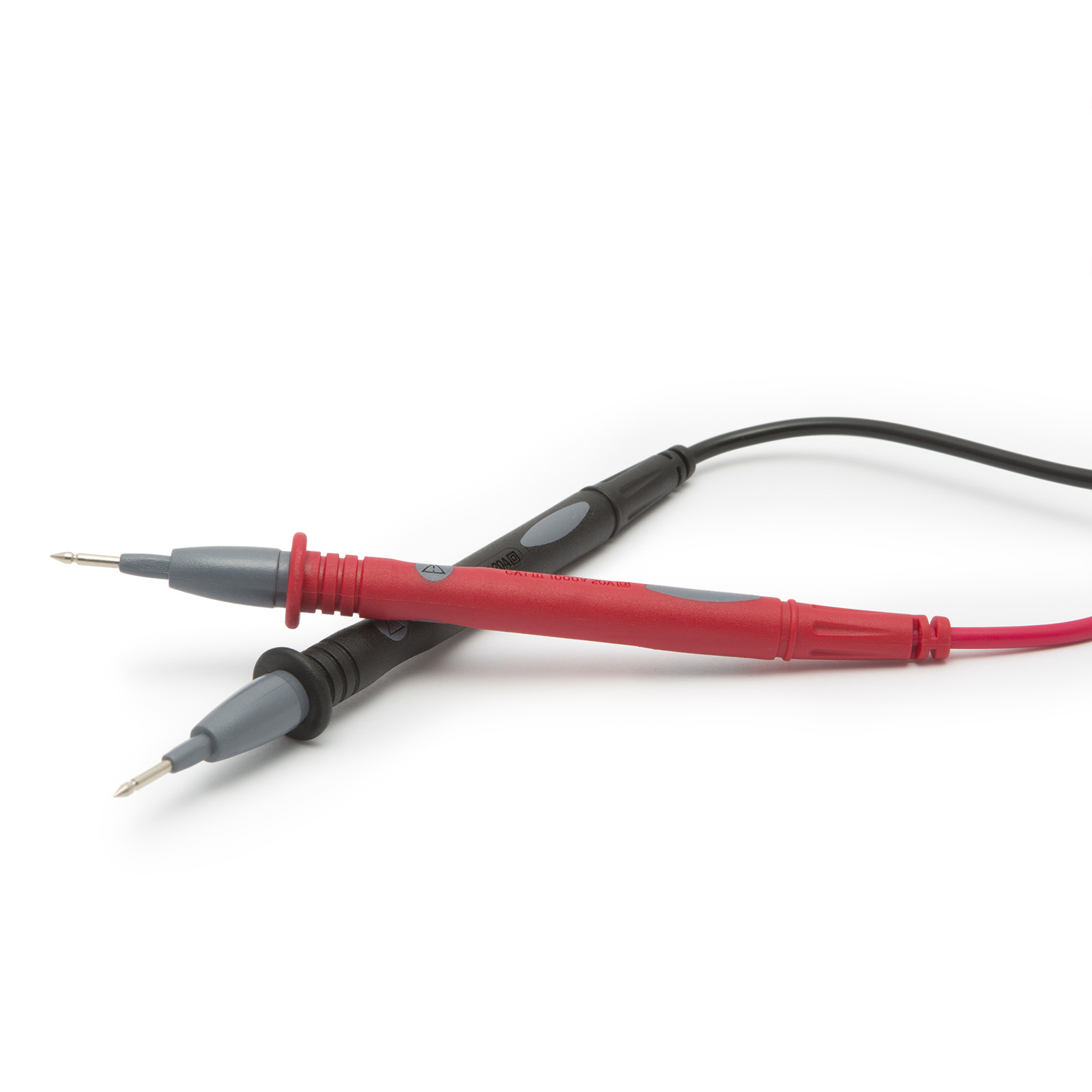

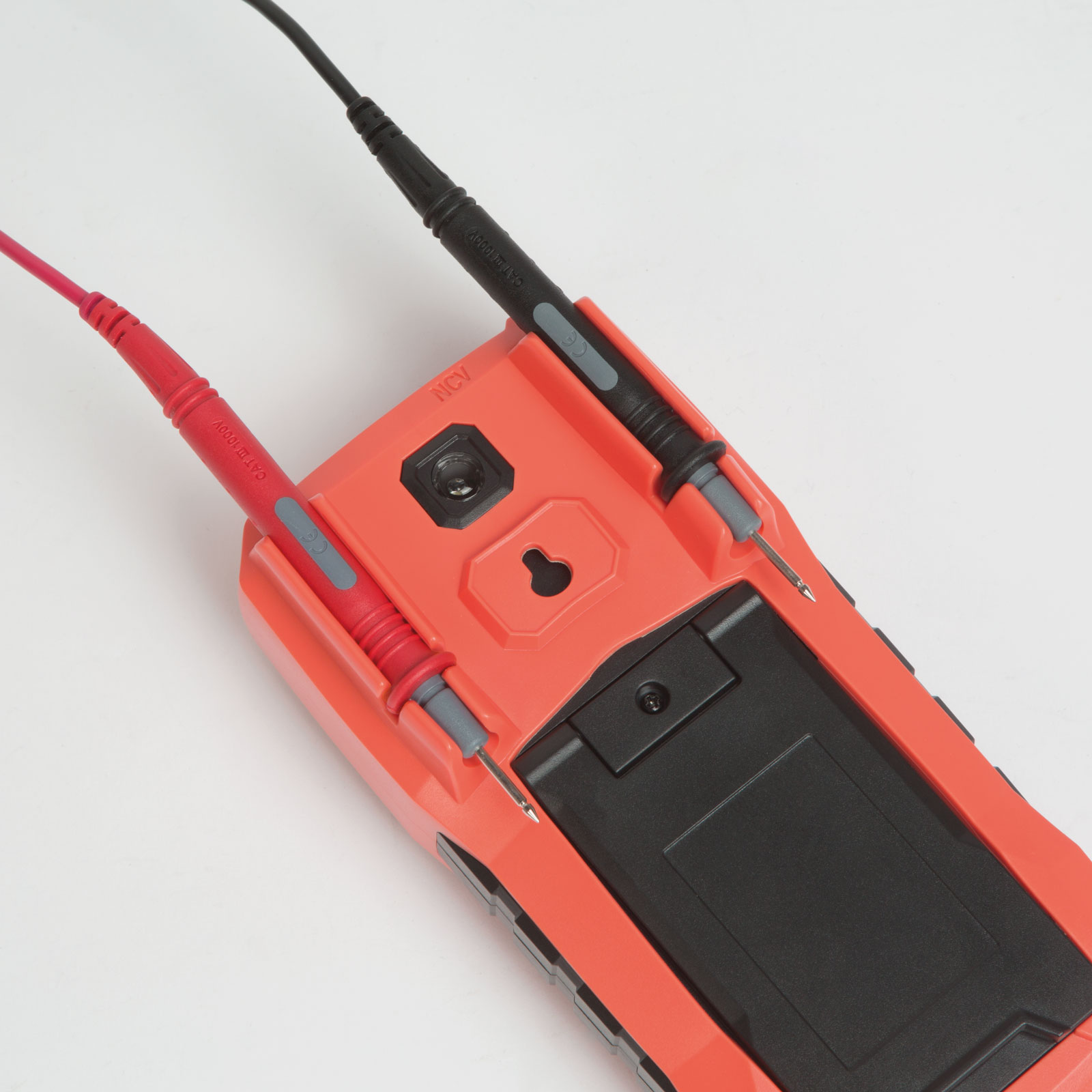

• Test Leads
Downloads:
User Manual
|
|
|
