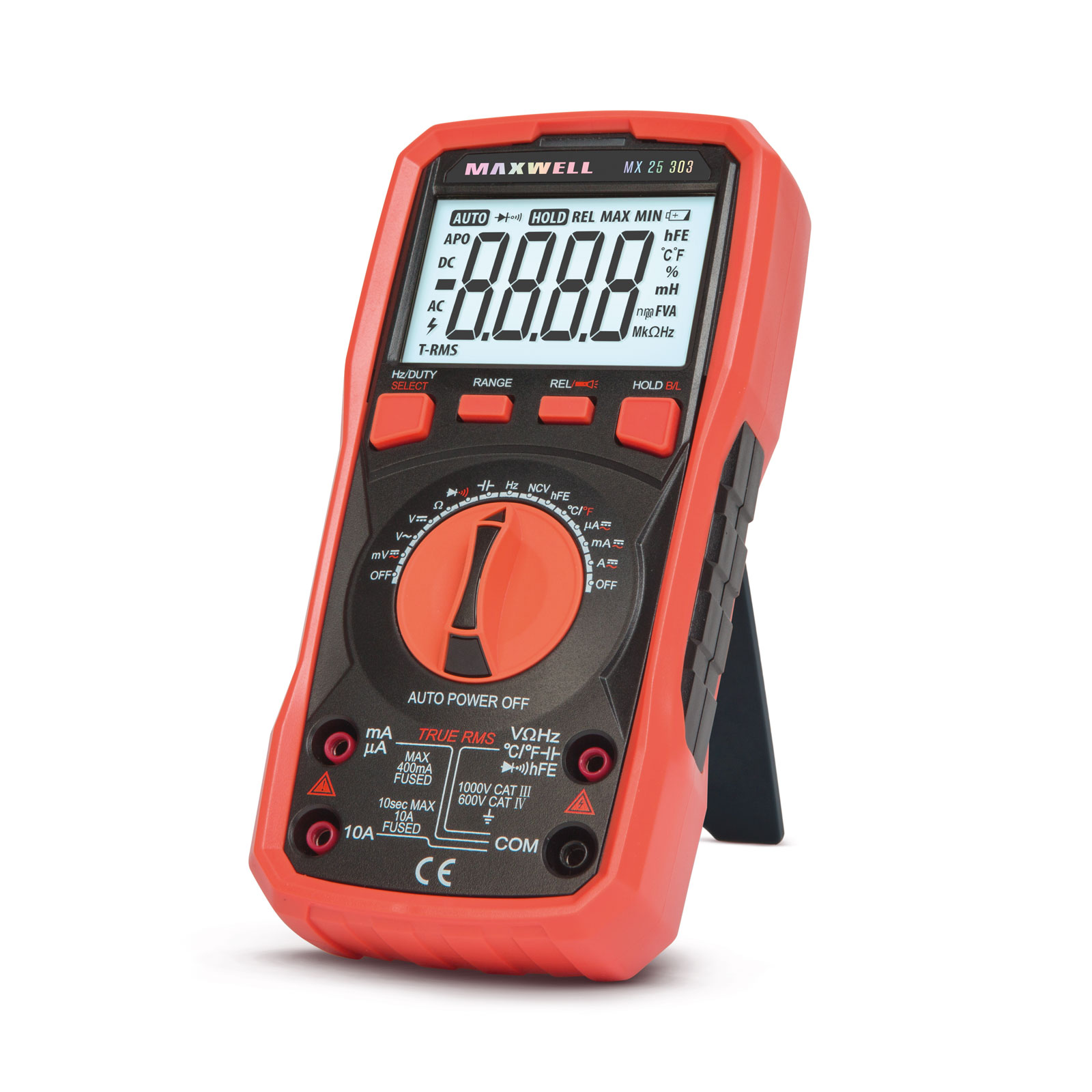

Digital multimeter with temperature and frequency measurement functions. Fully automated and quickly changes the measuring range. True RMS, non-sinusoidal waveform, and the backlight allow an easy measurement process. Features high-quality and durable constructions, as all of our 300-range products.
| Display: |
4 digits |
| AC V: |
1 mV - 750 V |
| DC V: |
0.1 mV – 1000 V |
| AC A: |
0.1 μA - 10 A |
| DC A: |
0.1 μA - 10 A |
| Resistance: |
0.1 Ω - 40 MΩ |
| Temperature: |
-40 °C - +1000 °C |
| Capacity: |
1 pF - 200 μF |
| Frequency: |
10 Hz - 20 MHz |
| Duty cycle: |
0.1 % - 99 % |
| Size: |
190 x 95 x 40 mm |
| Diode test: |
 |
| Continuity test: |
|
| Beep: |
|
| Backlight: |
|
| Auto power-off: |
|
| Transistor test: |
|
| Relative data hold: |
|
Accessories:
• Multifunction Socket
• K-Type Thermocouple

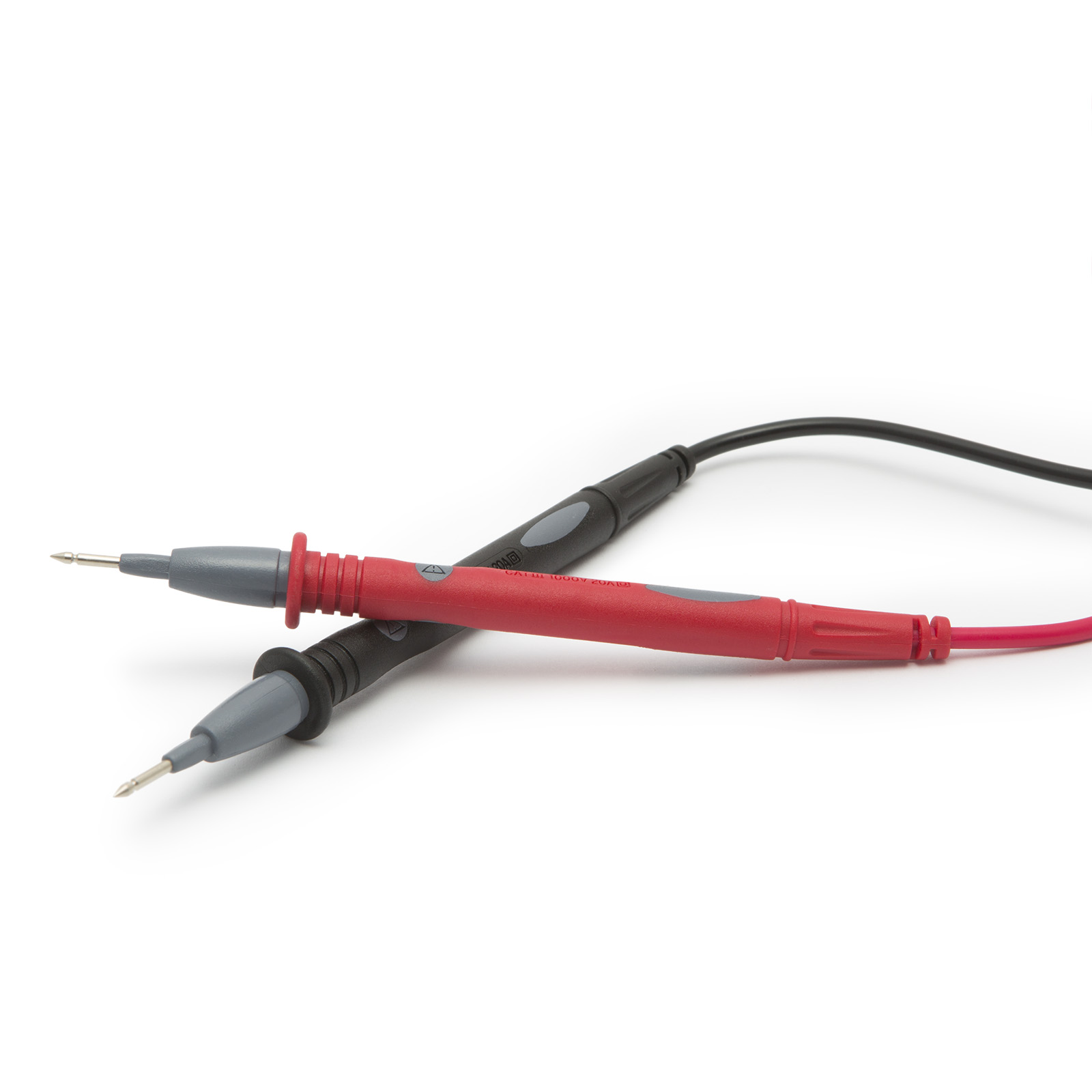

• Test Leads
Downloads:
User Manual
|
|
|
