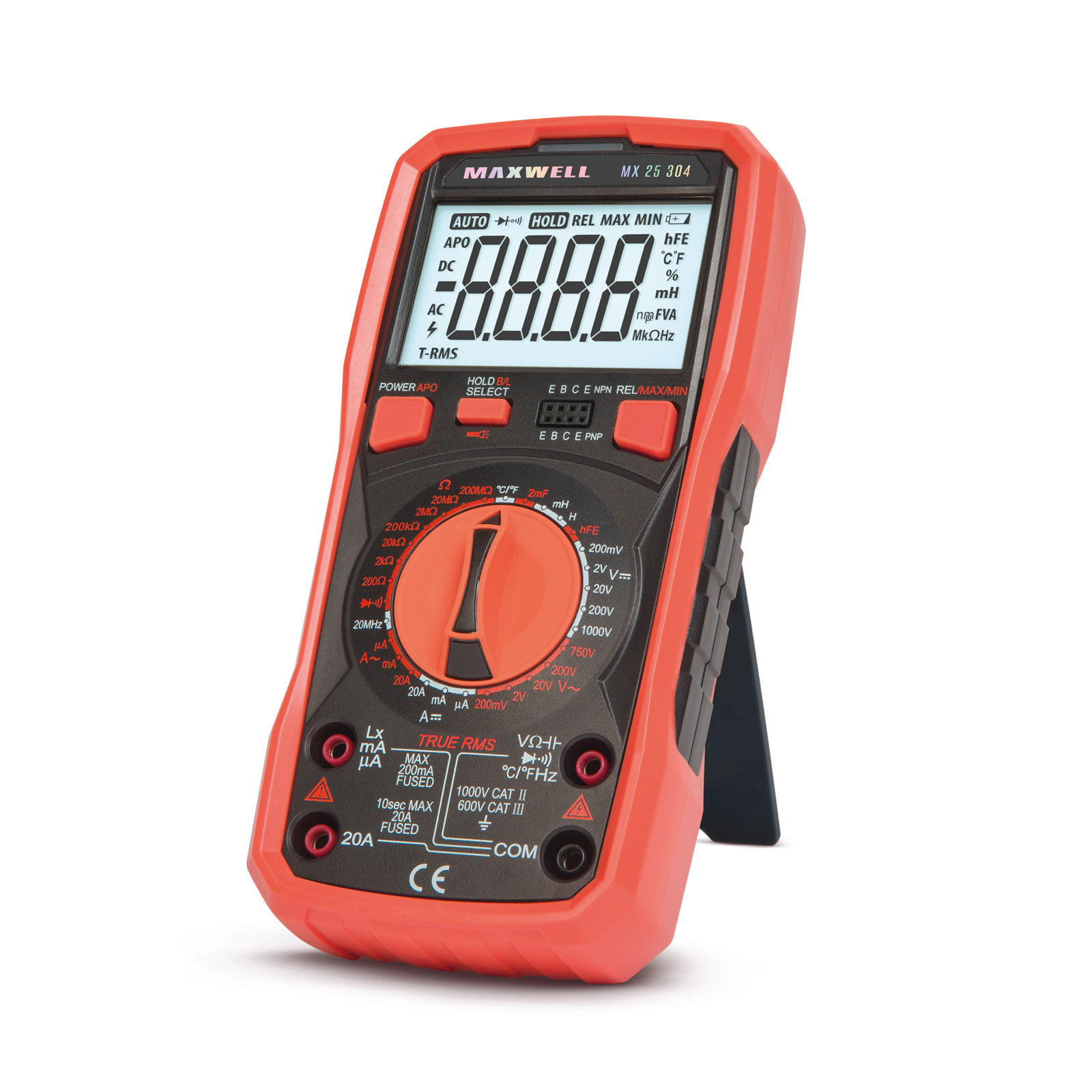

Digital Multimeter with temperature, frequency and inductivity measurement functions. True RMS, non-sinusoidal waveform, and the backlight allow an easy measurement process. Features high-quality and durable constructions, as all of our 300-range products.
| Display: |
4 digits |
| AC V: |
0.1 mV - 750 V |
| DC V: |
0.1 mV - 1000 V |
| AC A: |
0.1 μA - 20 A |
| DC A: |
0.1 μA - 20 A |
| Resistance: |
0.1 Ω - 200 MΩ |
| Temperature: |
-20 °C - +1000 °C |
| Capacity: |
10 pF - 2 mF |
| Frequency: |
1 Hz - 20 MHz |
| Inductance: |
1 μH - 20 H |
| Size: |
195 x 95 x 40 mm |
| Diode test: |
 |
| Continuity test: |
|
| Beep: |
|
| Backlight: |
|
| Auto power-off: |
|
| Transistor test: |
|
| True RMS: |
|
| Max/Min/Rel mode: |
|
| Data hold: |
|
Accessories:
• 9V (6F22) Battery
• Banana Plug Thermocouple

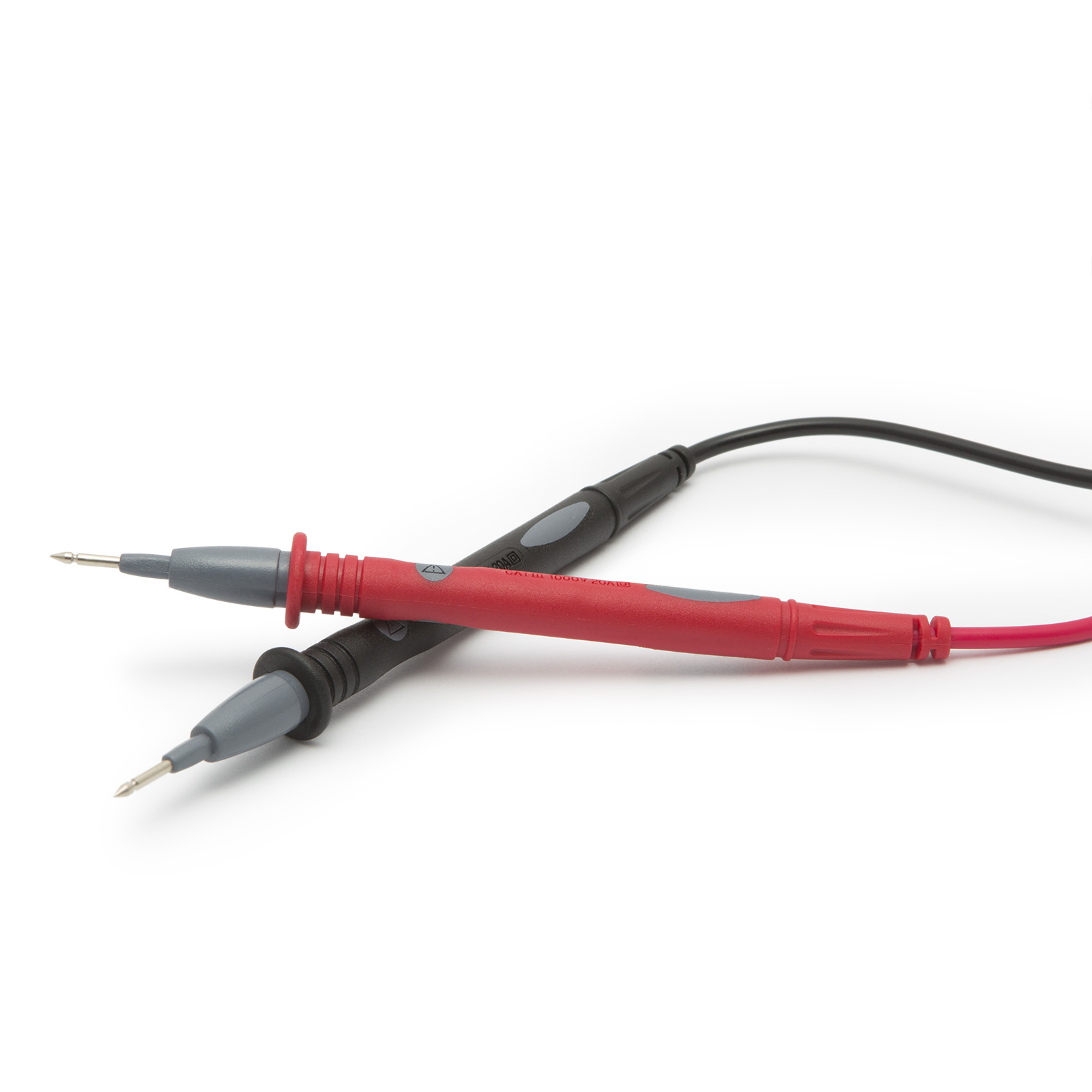

• Test Leads
Downloads:
User Manual
|
|
|
