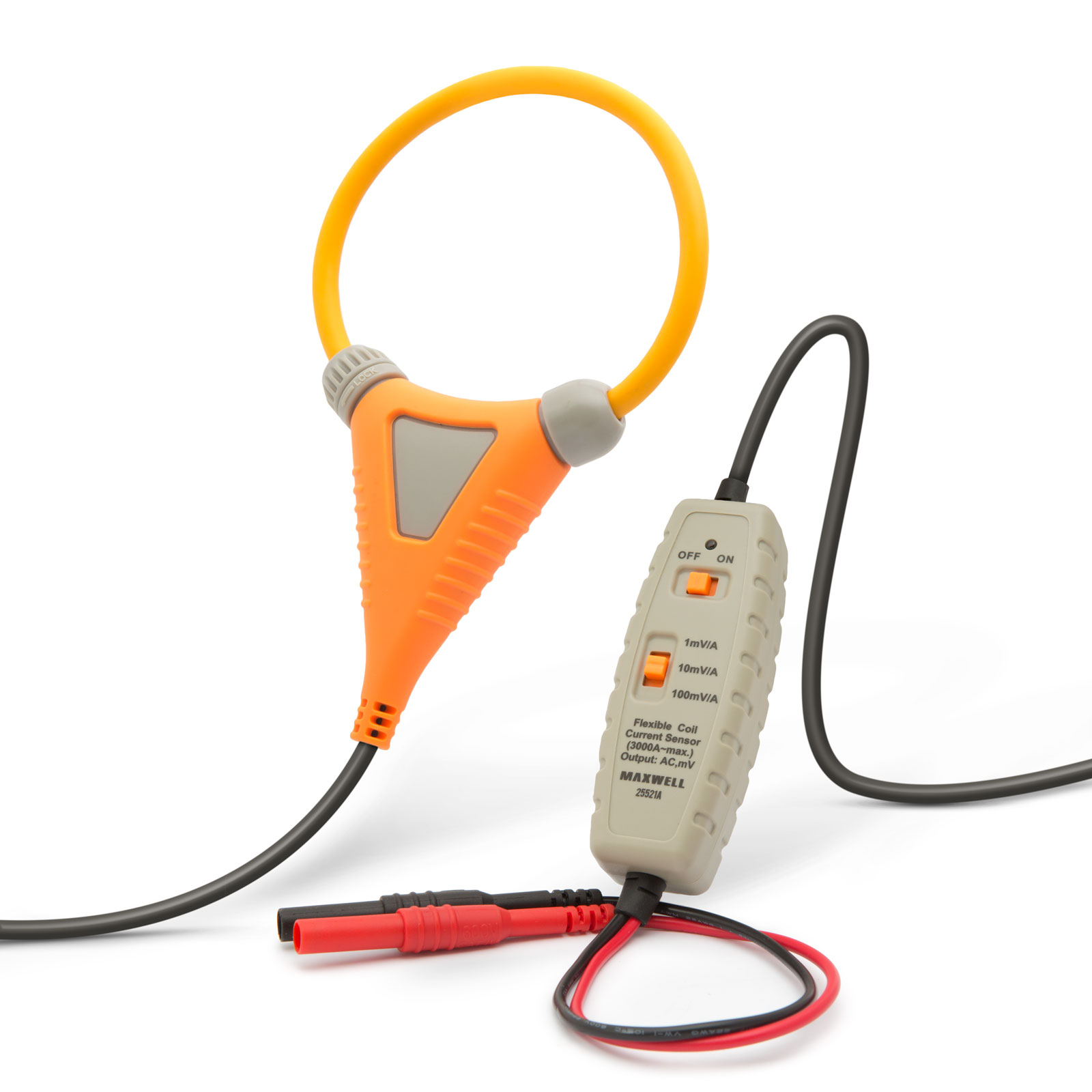

It does not require the circuit to be interrupted and the insulation of the wire to be measured will not be broken. Can be connected to any multimeter with AC voltage measuring function and measuring display at least 1mV.
| Size: |
200 x 130 x 24 mm, 97 x 35 x 25 mm |
Accessories:
• Not damaging measurement
• Easy, quick to use
• Measuring multiple cables at once
Measuring interval: 0,1 A – 3000 A (AC)
Clamp voltage output: 1 mV – 3000 mV
Measuring unit change: 1 mV /1 A, 10 mv / 1 A, 100 mV / A
Precision(50-60 Hz,25°C): 0 A - 3000 A ±(1% + 0,1A)
Status indicator (ON-OFF low charge): yes
Cable length: 170cm
Connector: Standard insulated banana plug
Operating temperature: -5°C - 45°C (20-85% relative humidty)
Storage temperature: -20°C - 70°C (20-80% relative humidity)
The maximum capacity of the flexible stem: 100 mm
Battery type: 2 x 1,5V AAA
Weight: 258 g (Batteries not included)
Material: Plastic
Downloads:
User Manual
|
|
|
