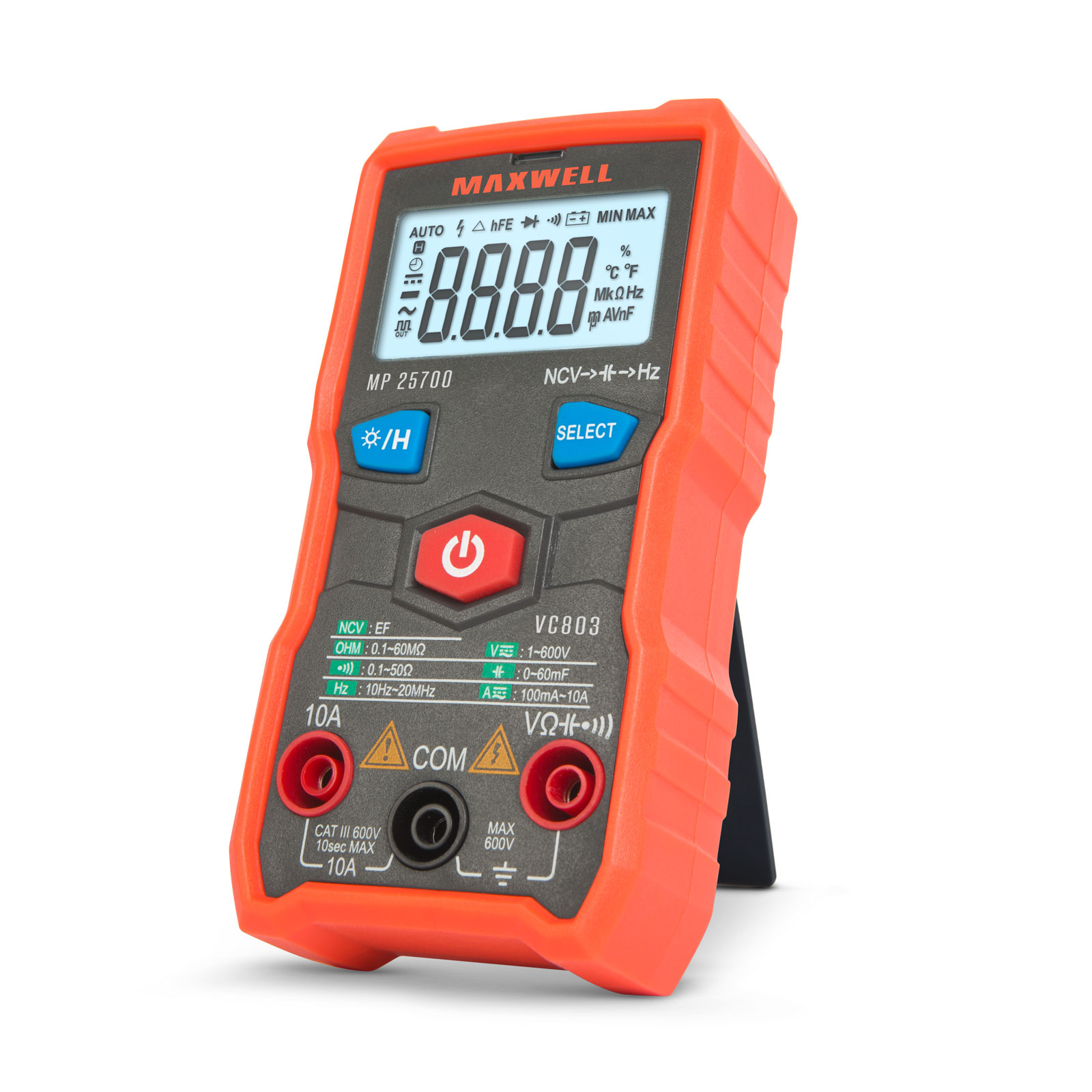

The advantage of a fully automatic multimeter is that during the measurement the device automatically detects which function is needed and performs the measurement accordingly. You can use the sensor on the top of the device to detect voltage without breaking the wiring. It is characterized by an ergonomic housing, compact size and easy handling. The practical carrying case protects the product during transport.
| Display: |
4 digit - 42 x 23 cm |
| AC V: |
1 - 600 V |
| DC V: |
1 - 600 V |
| AC A: |
100 mA - 10 A |
| Resistance: |
0,1 Ω - 60 MΩ |
| Capacity: |
1 nF - 60 mF |
| Frequency: |
10 Hz - 20 MHz |
| Size: |
121 x 60 x 36 mm |
| Continuity test: |
 |
| Beep: |
|
| Backlight: |
|
| Auto power-off: |
|
| Automatic range selection: |
|
| LED lamp: |
|
Accessories:
• Automatic measurement function setting
• Possibility of manual adjustment (Voltage detection, capacity measurement, frequency measurement)
• Continuity test
• Resistance measurement
• Frequency measurement
• Large display with backlight
• Flashlight function
• Sound indicator
• LED feedback
• Data retention
• Support
• Accessories: Instrument cord, carrying case, battery (2 x AAA 1,5 V)
Downloads:
User Manual
|
|
|
